BigRed Steel Hydraulic Jack Stand 3 Ton Black + Red

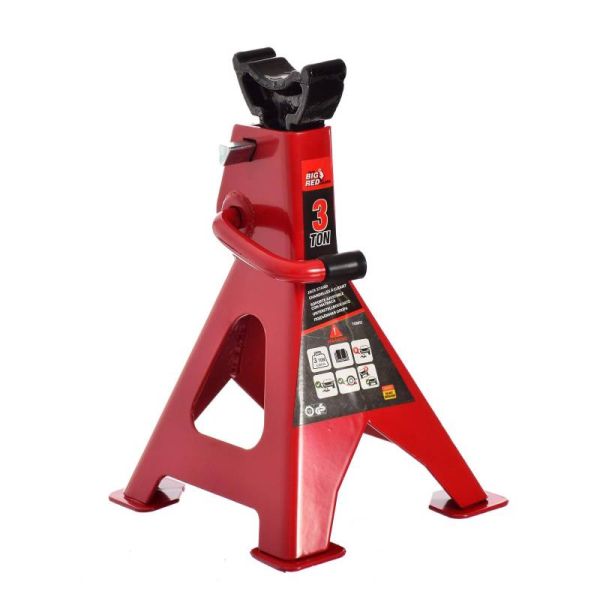

Bigred Steel Hydraulic Jack Stand 3 Ton – Black + Red

 Jack Stands are designed to support rated capacity, partial vehicle loads consisting of one end of a vehicle. Use both stands for each operation.

• Ratchet type axle stands with cast iron support post and tough welded steel plate base.

• Angled teeth in post prevent accidental release of load - the more weight applied, the tighter the post is locked.

• Lightweight jack stands are used to support your vehicle after jacking; a Wide pyramid foot base provides added strength and stable support.

• Constructed of high quality forged steel with a welded frame design for durability, it handles a wide range of vehicles, including small cars, SUVs, and light trucks.

• Adjustable height ranges from 11-1 / 4 inches to 16-3 / 4 inches with a 3 ton (6,000 lb) load capacity

• The multi-position ratchet bar has a sawtooth design, allowing for quick height adjustments that lock into place.

• It has a large seating surface for better contact with the load that is supported. Tested for reliability and safety to meet ASME standards.

Direction for use :

In order to prevent removal of the post from the base use a hammer and flat end punch to hammer the jack's tab in toward to post but not touching the post. The same stands are equipped with a bolt instead of the tab. In this case, the bolt can be threaded in toward the post until the bolt bottoms out.

• Use on a hard level surface with less than 3 degrees of slope.

• Raise the vehicle with a suitable jack

• Adjust the height by pulling up on the ratchet bar.

• The weight of the locking handle should secure the ratchet bar in the desired position. To confirm this, simply push down on the locking handle. Check to ensure ratchet is secure before loading.

• Carefully position jack stands so that load is centered on stand's saddle.

• Slowly lower the vehicle onto the stands

• Check to ensure the vehicle is secure before working on, around, or under. When used to support vehicles, use wheel chocks on all unlifted wheels in both directions to prevent inadvertent movement.

• DO NOT jack or Dolley jack stands are supporting the vehicle.

Includes :

• 1 psc Ratchet Bar

• 1 Locking pawl

• 1 Spring Pin ø4X30mm

• 1 psc Locking Handle

• 1 psc Handle Sleeve

• 1 psc Base Frame

• 1 psc Hex Head Bolt M8X16mm
