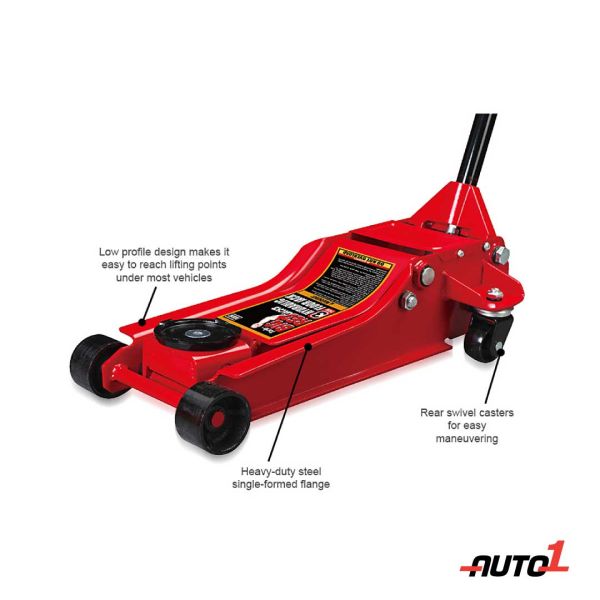

Big Red Hydro Low Floor Jack 3 Ton With Dual Pump

Big Red 3 Ton Low Profile Quick Lift Service Jack - Red

This BIGRED product has a single hydraulic pump piston that effortlessly raises the lift arm. Pump piston dust shields and wiper seals protect the hydraulic system from contaminants. The jack features an overload valve bypass system to prevent jack damage and user injury. Compact design allows use in confined spaces. Easily fits under low vehicles. This product is tested for reliability and safety

• The hydraulic technology makes lifting simple while a wider frame and internal bypass valve ensure safety.
• Safety bypass system prevents overloading and ensures safe operation.
• steel casters for longevity.
• Special quality design: polished and treated cylinder rams use high-performance seats. Polished inner cylinder walls extend the life of the seals to minimize abrasion and wear.

Direction for use :

Before first use

· Before using the jack, purge the hydraulic circuit, in order to eliminate any air in the system, by turning the handle anti-clockwise to open and pumping 8 or 9 times

· WARNING! Before lifting ensure that Section 1 safety precautions are strictly followed.

· Prepare the vehicle as described in the safety instructions, ensuring that the ground on which the jack is to stand is level and solid (not tarmacadam).

· Position the jack saddle under the vehicle manufacturer's recommended lifting point.

· Always use on a hard level concrete surface only.

· Place jack directly under the object to be lifted so that saddle takes up weight firmly and centrally. Check to position under a slight load make sure jack will not slip when in use.

· Raise jack to required height -After lifting, use a jack stand to hold the load for any length of time.

· The lowering speed is controlled by the amount you turn the handle. Lower carefully, avoiding sudden release.
WARNING! Ensure that there are no persons or obstacles beneath the vehicle, or in the path of its descent

Note: If the jack becomes overloaded, a safety excess pressure valve will open, and stop the vehicle from lifting further.
