BigRed Hydraulic Bottle Jack 6 Ton - Red

Big Red Hydraulic Bottle Jack 6 ton – Red

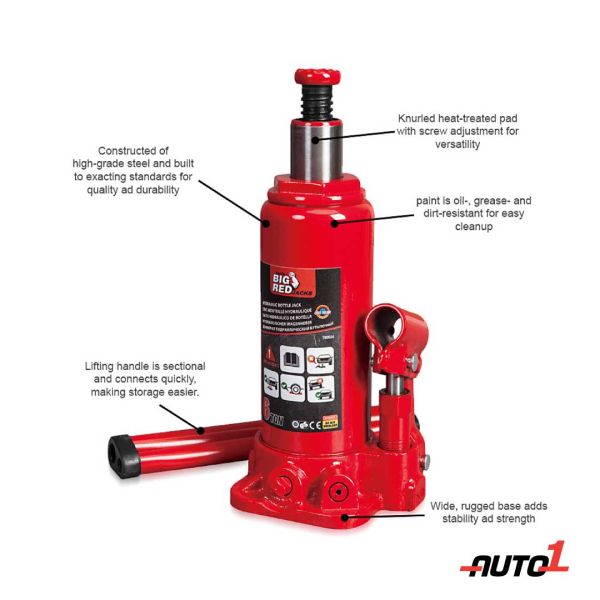

This BIGRED product is designed for lifting. The jack can be used vertically or angled to 3 degrees from a vertical position. After lifting, loads must be immediately supported by jack stands. Each model is suitable for use in lifting or positioning vehicles, machinery, houses, and/or other building structures.

•  Heat-treated extension screw allows low pickup height adjustment and maximum lift height.
  • Serrated, heat treated saddle provides generous lifting area and secure grip.
  • A wide, rugged base provides stability and strength. All models critical stress points are reinforced for added durability and dependability.

Direction for use :

• To raise a load, close the release valve by rotating the handle firmly in a clockwise direction (do not over-tighten).
• Carefully position the jack under the load and pump the jack handle to raise the load to the desired height.
• If raising a vehicle, always support it with vehicle stands before working on the vehicle or getting under it for any reason
• To lower the load, slowly rotate the jack handle counterclockwise just enough to open the release valve. Opening the release valve more permits the load to descend faster.
• IMPORTANT: As with any hydraulic unit, this unit may occasionally become "air-bound" due to being tipped over during shipment.
• To purge the air from the oil lines, open the release and pump rapidly a few strokes. Close release and pump to full height, then open the release to allow the ram to descend rapidly. lf the pump still seems "spongy", repeat the procedure.
