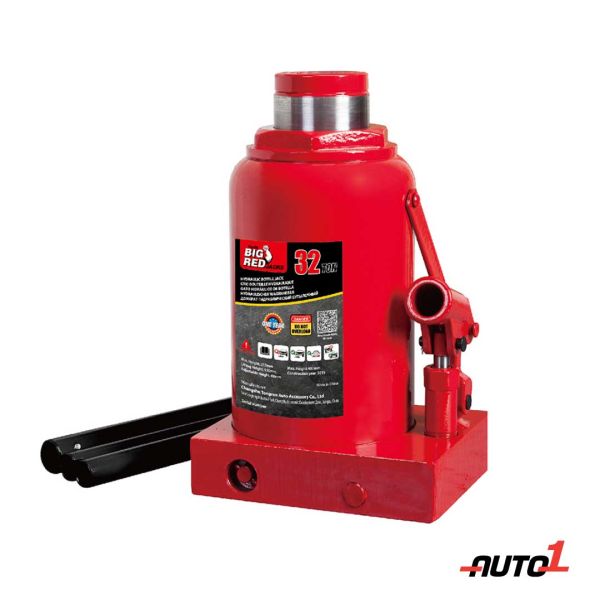

Big Red Hydraulic Bottle Jack 30/32 ton – Red

This BIGRED product is designed for lifting. The jack can be used vertically or angled to 3 degrees from a vertical position. After lifting, loads must be immediately supported by jack stands. Each model is suitable for use in lifting or positioning vehicles, machinery, houses, and/or other building structures.

• Heat-treated extension screw allows low pickup height adjustment and maximum lift height.

  Serrated, heat treated saddle provides generous lifting area and secure grip.

  • A wide, rugged base provides stability and strength. All models critical stress points are reinforced for added durability and dependability.

Direction for use :

TO RAISE:

• With the narrow end of the jack handle. close release valve tightly by turning it clockwise

• Place the jack under the vehicle at the proper lilting location. (Refer to vehicle Owner’s Manual. f) it needed, turn the extension screw-on jack counterclockwise until it comes into contact with the vehicle.

• insert jack handle into handle socket. Pump the handle to lift the vehicle to the desired height.

TO LOWER:

CAUTION: LOWER vehicle SLOWLY! TURN RELEASE VALVE SLOWLY!

OPERATING INSTRUCTIONS

Before using the jack:

• Using the handle, open the release valve by rotating it counterclockwise one full turn,

• Place the handle in the handle socket and pump about 6 full strokes to purge the air from the pump and valve.

• Close the release valve. Pump the handle until the jack has reached full extension. Continue to pump several times to purge air from under the ram.

• Open the release valve and push the ram into its lowest position. Close the release valve and operate normall
